Sample Ticket Printer Template

This is a screen shot of a ticket printed from SambaPOS and the required template for creating it.

You need to have at least SambaPOS 2.73 for some formatting features.

Template Values

Header Template

<J00>
<EB>
<J00>Date: {TICKET DATE} | Table No: | {TABLE}
<J00>Time: {TIME} | Ticket No:| {TICKET NO}
<DB>
<J00>
<F>-

Line Template

<J00>- {QUANTITY} {NAME}| {TOTAL}| {TOTAL AMOUNT}
* {PROPERTIES}

Gift Line Template

<L00>{QUANTITY} {NAME} |GIFT

Footer Template

<F>-
<R21>Total ${TICKET TOTAL}
<L00>{TOTAL TEXT}
<L>
<L>
<J00>============== Tax Details ===============
{TAX DETAILS}
<J00>Tax Total :| {TAX TOTAL}
<J00>
<EB>
<F>*
<L>* Thank you for dining with us! *
<F>*
<DB>

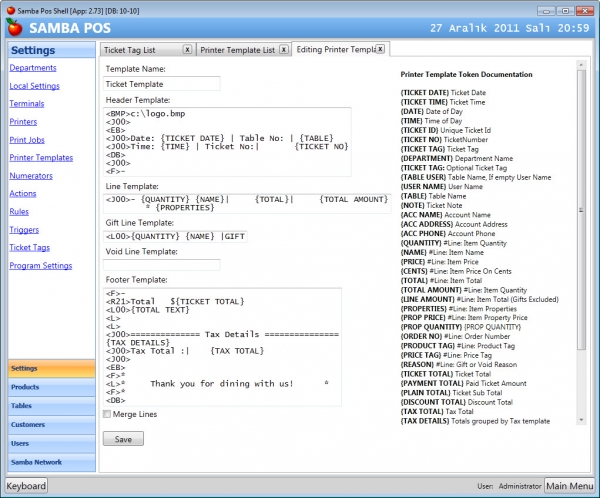

Printer Template Editor Screen
